Fiio K5

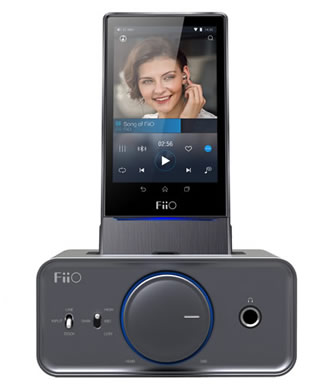

FiiO K5 Dock

The K5 is the latest docking station from FiiO. It is compatible with the X1, X3ii, X5ii and X7, as well as the E17K. With an 11pin micro USB port this allows you facilitate exclusive docking expansion functions such as amplifications and charging.

The K5 allows further amplification of the X1, X3ii, X5ii and X7 and E17K’s signal by directly connecting them to the USB source, through the USB IN port. It received the decoded line signal through the dock for amplification. A USB DAC driver installation for X3ii/X5ii/X7/E17K is required (where applicable)

Compared to the E9/E09K the K5 has made breakthrough strides in exterior design and craftsmanship. It has lower tolerances for all joints and seams and a higher quality sanded finish.

Besides regular RCA line output, the K5 also possesses balanced line output functionality when docked to the X5ii or X7. It can also be connected to other professional amplifier components for even better sound.

The FiiO K5, as well as being a dock will allow for standard line inputs to be used for other source components. When a player is docked on the K5 it will also synchronise the on/off function, allowing you to turn both units off at once.

In Stock - £95.99





Spacer

Features.

Dock for FiiO X1, X3ii, X5ii and X7 and E17K Only

Brushed aluminum alloy sleek design

Dock allows for further amplification

Unit is charged whilst docked

Decode Audio over USB

Can be further expanded with other professional amplifier equipment

In the box.

FiiO K5 Unit

UK power supply

User Manual

Fiio K5Fiio K5Fiio K5Fiio K5Fiio K5Fiio K5Fiio K5Fiio K5

Technical specifications.

Colour: Titanium

Headphone port: 6.35mm stereo Jack

Drive ability: 16~300Ω

Equaliser: LOW: 0dB,   MID: 6dB,  HIGH:12dB

Volume Control: Via analog potentiometer (Inc. power switch)

Output Power 1: >1.7W (16Ω/THD+N1%)

Output Power 2:  >1.5W (32Ω Loaded)

Output Power 3:  >150mW (300Ω/THD+N1%)

Output Impedance:  <1 Ω (32Ω THD+N<1%

SNR:  ≥11dB (A-weighted) [line in]

Frequency response:  20 Hz~20 kHz±0.2d

Crosstalk:  >70 dB (1 kHz)

MAX output voltage: >20 Vp-p

THD+N: <0.002% [line in]

Power Supply: DC15V/1.5A

Dimensions: 120mm x 130mm x 55mm

Weight: 450g
